Browse for Folder

This fix was first reported by tsetya (see here)

Issue(s):

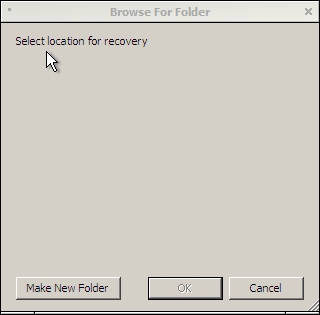

When a program opens a Browse for Folder dialog, the directory tree is missing and it is therefore not possible to select a folder -

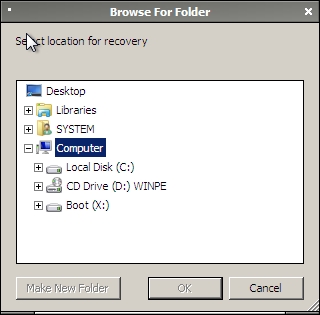

With fix applied -

Note(s):

• This fix does not work with Windows 6.0.**** sources (including Windows Vista).

• In addition to the file and registry dependencies listed below, a "%UserProfile%\Desktop" directory may also be required. The default path for %UserProfile% in WinPE is "X:\Windows\System32\config\systemprofile"

File Dependencies:
This feature requires the following file dependencies -
\Windows\System32\ExplorerFrame.dll \Windows\System32\*\ExplorerFrame.dll.mui

Some releases of Windows 10 also require the following file -
\Windows\System32\edputil.dll

Registry Dependencies:

reg.exe batch file commands -
@echo off reg.exe add "HKLM\SOFTWARE\Classes\CLSID\{AE054212-3535-4430-83ED-D501AA6680E6}" /ve /t REG_SZ /d "Shell Name Space ListView" /f reg.exe add "HKLM\SOFTWARE\Classes\CLSID\{AE054212-3535-4430-83ED-D501AA6680E6}\InProcServer32" /v "ThreadingModel" /t REG_SZ /d "Apartment" /f reg.exe add "HKLM\SOFTWARE\Classes\CLSID\{AE054212-3535-4430-83ED-D501AA6680E6}\InProcServer32" /ve /t REG_EXPAND_SZ /d "%%SystemRoot%%\system32\ExplorerFrame.dll" /f

.reg file (import using regedit.exe) -
Windows Registry Editor Version 5.00 [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\CLSID\{AE054212-3535-4430-83ED-D501AA6680E6}] @="Shell Name Space ListView" ;hex = REG_EXPAND_SZ type value containing data %SystemRoot%\system32\explorerframe.dll [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\CLSID\{AE054212-3535-4430-83ED-D501AA6680E6}\InProcServer32] @=hex(2):25,00,53,00,79,00,73,00,74,00,65,00,6d,00,52,00,6f,00,6f,00,74,00,25,\ 00,5c,00,73,00,79,00,73,00,74,00,65,00,6d,00,33,00,32,00,5c,00,65,00,78,00,\ 70,00,6c,00,6f,00,72,00,65,00,72,00,66,00,72,00,61,00,6d,00,65,00,2e,00,64,\ 00,6c,00,6c,00,00,00 "ThreadingModel"="Apartment"

OfflineReg batch file commands -
@echo off offlinereg-win32.exe PATH\Software Classes\CLSID\{AE054212-3535-4430-83ED-D501AA6680E6}\InProcServer32 setvalue " " "Shell Name Space ListView" offlinereg-win32.exe PATH\Software Classes\CLSID\{AE054212-3535-4430-83ED-D501AA6680E6}\InProcServer32 setvalue " " "%%SystemRoot%%\System32\ExplorerFrame.dll" 2 offlinereg-win32.exe PATH\Software Classes\CLSID\{AE054212-3535-4430-83ED-D501AA6680E6}\InProcServer32 setvalue "ThreadingModel" "Apartment"

Document date - 17^th February 2018
