WinPE Tweaks

File Copy Dialog

Issue:

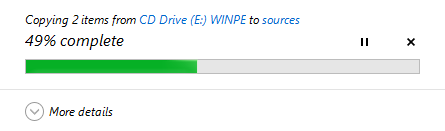

The progress bar usually displayed when copying files and folders is not displayed in a Windows Preinstallation Environment.

Page Contents -

Windows 6.1.760*
Windows 6.2.9200 to 10.0.14393
Windows 10.0.15063 and 10.0.16299

Windows 6.1.760*

File Dependencies:
\Windows\System32\ExplorerFrame.dll \Windows\System32\shellstyle.dll \Windows\System32\*\ExplorerFrame.dll.mui \Windows\System32\*\shellstyle.dll.mui

Registry Dependencies:
N/A - None

Windows 6.2.9200 to 10.0.14393

File Dependencies:
\Windows\System32\actxprxy.dll \Windows\System32\chartv.dll \Windows\System32\*\chartv.dll.mui

Registry Dependencies:

reg.exe batch file commands -
@echo off reg.exe add "HKLM\SOFTWARE\Classes\CLSID\{C90250F3-4D7D-4991-9B69-A5C5BC1C2AE6}\InProcServer32" /ve /t REG_EXPAND\_SZ /d "%%SystemRoot%%\System32\actxprxy.dll" /f reg.exe add "HKLM\SOFTWARE\Classes\CLSID\{C90250F3-4D7D-4991-9B69-A5C5BC1C2AE6}\InProcServer32" /v "ThreadingModel" /t REG_SZ /d "Both" /f

.reg file (import using regedit.exe) -
Windows Registry Editor Version 5.00 ;hex value - %SystemRoot%\System32\actxprxy.dll [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\CLSID\{C90250F3-4D7D-4991-9B69-A5C5BC1C2AE6}\InProcServer32] @=hex(2):25,00,53,00,79,00,73,00,74,00,65,00,6d,00,52,00,6f,00,6f,00,74,00,25,\ 00,5c,00,53,00,79,00,73,00,74,00,65,00,6d,00,33,00,32,00,5c,00,61,00,63,00,\ 74,00,78,00,70,00,72,00,78,00,79,00,2e,00,64,00,6c,00,6c,00,00,00 "ThreadingModel"="Both"

OfflineReg batch file commands -
@echo off Offlinereg-win32.exe "PATH\Software" "Classes\CLSID\{C90250F3-4D7D-4991-9B69-A5C5BC1C2AE6}\InProcServer32" setvalue " " "%%SystemRoot%%\System32\actxprxy.dll" 2 Offlinereg-win32.exe "PATH\Software" "Classes\CLSID\{C90250F3-4D7D-4991-9B69-A5C5BC1C2AE6}\InProcServer32" setvalue "ThreadingModel" "Both"

Windows 10.0.15063 and 10.0.16299

This fix was first reported by slore (see here)

File Dependencies:
\Windows\System32\OneCoreUAPCommonProxyStub.dll \Windows\System32\chartv.dll \Windows\System32\*\chartv.dll.mui

Registry Dependencies:

reg.exe batch file commands -
@echo off reg.exe add "HKLM\SOFTWARE\Classes\CLSID\{95E15D0A-66E6-93D9-C53C-76E6219D3341}" /ve /t REG_SZ /d "PSFactoryBuffer" /f reg.exe add "HKLM\SOFTWARE\Classes\CLSID\{95E15D0A-66E6-93D9-C53C-76E6219D3341}\InProcServer32" /ve /t REG_SZ /d "%%SystemRoot%%\System32\OneCoreUAPCommonProxyStub.dll" /f reg.exe add "HKLM\SOFTWARE\Classes\CLSID\{95E15D0A-66E6-93D9-C53C-76E6219D3341}\InProcServer32" /v "ThreadingModel" /t REG_SZ /d "Both" /f reg.exe add "HKLM\SOFTWARE\Classes\Interface\{036B4FC7-6A11-4C07-8046-22D268C37721}" /ve /t REG_SZ /d "IInterruptedOperationHandler" /f reg.exe add "HKLM\SOFTWARE\Classes\Interface\{036B4FC7-6A11-4C07-8046-22D268C37721}\ProxyStubClsid32" /ve /t REG_SZ /d "{95E15D0A-66E6-93D9-C53C-76E6219D3341}" /f reg.exe add "HKLM\SOFTWARE\Classes\Interface\{04B0F1A7-9490-44BC-96E1-4296A31252E2}" /ve /t REG_SZ /d "IFileOperationProgressSink" /f reg.exe add "HKLM\SOFTWARE\Classes\Interface\{04B0F1A7-9490-44BC-96E1-4296A31252E2}\ProxyStubClsid32" /ve /t REG_SZ /d "{95E15D0A-66E6-93D9-C53C-76E6219D3341}" /f reg.exe add "HKLM\SOFTWARE\Classes\Interface\{0C9FB851-E5C9-43EB-A370-F0677B13874C}" /ve /t REG_SZ /d "IOperationsProgressDialog" /f reg.exe add "HKLM\SOFTWARE\Classes\Interface\{0C9FB851-E5C9-43EB-A370-F0677B13874C}\ProxyStubClsid32" /ve /t REG_SZ /d "{95E15D0A-66E6-93D9-C53C-76E6219D3341}" /f reg.exe add "HKLM\SOFTWARE\Classes\Interface\{4AE7498C-E1C0-475F-8573-41C26127C5D8}" /ve /t REG_SZ /d "IOperationStatusTile" /f reg.exe add "HKLM\SOFTWARE\Classes\Interface\{4AE7498C-E1C0-475F-8573-41C26127C5D8}\ProxyStubClsid32" /ve /t REG_SZ /d "{95E15D0A-66E6-93D9-C53C-76E6219D3341}" /f reg.exe add "HKLM\SOFTWARE\Classes\Interface\{61A969EF-64EA-4C48-BBF5-EEDE3B32BF86}" /ve /t REG_SZ /d "IOperationStatusService" /f reg.exe add "HKLM\SOFTWARE\Classes\Interface\{61A969EF-64EA-4C48-BBF5-EEDE3B32BF86}\ProxyStubClsid32" /ve /t REG_SZ /d "{95E15D0A-66E6-93D9-C53C-76E6219D3341}" /f reg.exe add "HKLM\SOFTWARE\Classes\Interface\{0C3C904A-AD89-4851-9C3D-210C080CEE18}" /ve /t REG_SZ /d "IOperationStatusService" /f reg.exe add "HKLM\SOFTWARE\Classes\Interface\{0C3C904A-AD89-4851-9C3D-210C080CEE18}\ProxyStubClsid32" /ve /t REG_SZ /d "{95E15D0A-66E6-93D9-C53C-76E6219D3341}" /f

.reg file (import using regedit.exe) -
Windows Registry Editor Version 5.00 [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\CLSID\{95E15D0A-66E6-93D9-C53C-76E6219D3341}] @="PSFactoryBuffer" ;hex value - %SystemRoot%\System32\OneCoreUAPCommonProxyStub.dll [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\CLSID\{95E15D0A-66E6-93D9-C53C-76E6219D3341}\InProcServer32] @=hex(2):25,00,53,00,79,00,73,00,74,00,65,00,6d,00,52,00,6f,00,6f,00,74,00,25,\ 00,5c,00,53,00,79,00,73,00,74,00,65,00,6d,00,33,00,32,00,5c,00,4f,00,6e,00,\ 65,00,43,00,6f,00,72,00,65,00,55,00,41,00,50,00,43,00,6f,00,6d,00,6d,00,6f,\ 00,6e,00,50,00,72,00,6f,00,78,00,79,00,53,00,74,00,75,00,62,00,2e,00,64,00,\ 6c,00,6c,00,00,00 "ThreadingModel"="Both" [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Interface] [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Interface\{036B4FC7-6A11-4C07-8046-22D268C37721}] @="IInterruptedOperationHandler" [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Interface\{036B4FC7-6A11-4C07-8046-22D268C37721}\ProxyStubClsid32] @="{95E15D0A-66E6-93D9-C53C-76E6219D3341}" [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Interface\{04B0F1A7-9490-44BC-96E1-4296A31252E2}] @="IFileOperationProgressSink" [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Interface\{04B0F1A7-9490-44BC-96E1-4296A31252E2}\ProxyStubClsid32] @="{95E15D0A-66E6-93D9-C53C-76E6219D3341}" [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Interface\{0C9FB851-E5C9-43EB-A370-F0677B13874C}] @="IOperationsProgressDialog" [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Interface\{0C9FB851-E5C9-43EB-A370-F0677B13874C}\ProxyStubClsid32] @="{95E15D0A-66E6-93D9-C53C-76E6219D3341}" [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Interface\{4AE7498C-E1C0-475F-8573-41C26127C5D8}] @="IOperationStatusTile" [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Interface\{4AE7498C-E1C0-475F-8573-41C26127C5D8}\ProxyStubClsid32] @="{95E15D0A-66E6-93D9-C53C-76E6219D3341}" ;Windows 10.0.16299 (Build 1709) "IOperationStatusService" key [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Interface\{61A969EF-64EA-4C48-BBF5-EEDE3B32BF86}] @="IOperationStatusService" [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Interface\{61A969EF-64EA-4C48-BBF5-EEDE3B32BF86}\ProxyStubClsid32] @="{95E15D0A-66E6-93D9-C53C-76E6219D3341}" ;Windows 10.0.15063 (Build 1703) "IOperationStatusService" key [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Interface\{0C3C904A-AD89-4851-9C3D-210C080CEE18}] @="IOperationStatusService" [HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Interface\{0C3C904A-AD89-4851-9C3D-210C080CEE18}\ProxyStubClsid32] @="{95E15D0A-66E6-93D9-C53C-76E6219D3341}"

OfflineReg batch file commands -
@echo off Offlinereg-win32.exe "PATH\Software" "Classes\CLSID\{95E15D0A-66E6-93D9-C53C-76E6219D3341}" setvalue " " PSFactoryBuffer Offlinereg-win32.exe "PATH\Software" "Classes\CLSID\{95E15D0A-66E6-93D9-C53C-76E6219D3341}\InProcServer32" setvalue " " "%%SystemRoot%%\System32\OneCoreUAPCommonProxyStub.dll" 2 Offlinereg-win32.exe "PATH\Software" "Classes\CLSID\{95E15D0A-66E6-93D9-C53C-76E6219D3341}\InProcServer32" setvalue "ThreadingModel" "Both" Offlinereg-win32.exe "PATH\Software" "Classes\Interface\{036B4FC7-6A11-4C07-8046-22D268C37721}" setvalue " " "IInterruptedOperationHandler" Offlinereg-win32.exe "PATH\Software" "Classes\Interface\{036B4FC7-6A11-4C07-8046-22D268C37721}\ProxyStubClsid32" setvalue " " "{95E15D0A-66E6-93D9-C53C-76E6219D3341}" Offlinereg-win32.exe "PATH\Software" "Classes\Interface\{04B0F1A7-9490-44BC-96E1-4296A31252E2}" setvalue " " "IFileOperationProgressSink" Offlinereg-win32.exe "PATH\Software" "Classes\Interface\{04B0F1A7-9490-44BC-96E1-4296A31252E2}\ProxyStubClsid32" setvalue " " "{95E15D0A-66E6-93D9-C53C-76E6219D3341}" Offlinereg-win32.exe "PATH\Software" "Classes\Interface\{0C9FB851-E5C9-43EB-A370-F0677B13874C}" setvalue " " "IOperationsProgressDialog" Offlinereg-win32.exe "PATH\Software" "Classes\Interface\{0C9FB851-E5C9-43EB-A370-F0677B13874C}\ProxyStubClsid32" setvalue " " "{95E15D0A-66E6-93D9-C53C-76E6219D3341}" Offlinereg-win32.exe "PATH\Software" "Classes\Interface\{4AE7498C-E1C0-475F-8573-41C26127C5D8}" setvalue " " "IOperationStatusTile" Offlinereg-win32.exe "PATH\Software" "Classes\Interface\{4AE7498C-E1C0-475F-8573-41C26127C5D8}\ProxyStubClsid32" setvalue " " "{95E15D0A-66E6-93D9-C53C-76E6219D3341}" Offlinereg-win32.exe "PATH\Software" "Classes\Interface\{61A969EF-64EA-4C48-BBF5-EEDE3B32BF86}" setvalue " " "IOperationStatusService" Offlinereg-win32.exe "PATH\Software" "Classes\Interface\{61A969EF-64EA-4C48-BBF5-EEDE3B32BF86}\ProxyStubClsid32" setvalue " " "{95E15D0A-66E6-93D9-C53C-76E6219D3341}" Offlinereg-win32.exe "PATH\Software" "Classes\Interface\{0C3C904A-AD89-4851-9C3D-210C080CEE18}" setvalue " " "IOperationStatusService" Offlinereg-win32.exe "PATH\Software" "Classes\Interface\{0C3C904A-AD89-4851-9C3D-210C080CEE18}\ProxyStubClsid32" setvalue " " "{95E15D0A-66E6-93D9-C53C-76E6219D3341}"

Document date - 17^th February 2018
